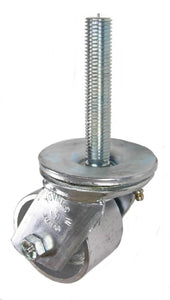

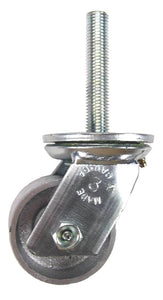

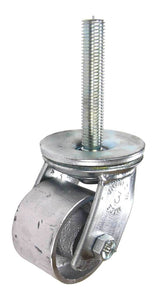

3-1/4" x 2" Cast Iron Wheel Swivel Caster with 3/4" Threaded Stem - 700 Lbs Capacity

Mappcaster

$118.08

Social Sharing

  • Description

3-1/4" x 2" CAST IRON WHEEL SWIVEL CASTER WITH 3/4" THREADED STEM - Part #: 7RTP032CIR

Specifications:

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options. Please note that all 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

While semi steel is very strong, it is tough on floors and could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

Load Capacity (lbs.): 700 Link to Matching Rigid Caster: N/A
Wheel Diameter: 3-1/4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Silver Zinc Plated
Wheel Type: Cast Iron Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Bearings Options Swivel Radius: 2-13/16"
Overall Height: 4-1/2" Swivel Construction: Kingpin
Temp Range:  -40 to 600˚F Threaded Stem: 3/4" - 10 x 4"
Wheel Hardness:  Brinell 145 Bolt Hole Pattern: N/A
Wheel Color: Gray Mounting Bolt Size: 3/4"
Link to Replacement Wheel: LSS3420 Weight: 6.5 lbs.
