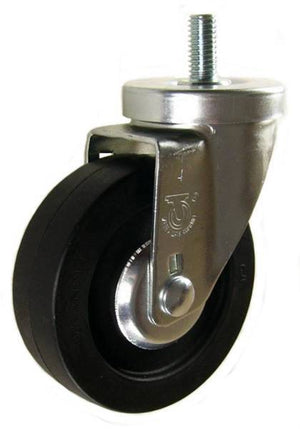

4" x 1-1/4" Extreme Duty Hard Rubber Wheel Swivel Caster with 1/2" Threaded Stem Ball Bearings (1" Stem Length) - 300 Lbs Capacity

Mappcaster

$21.77

Social Sharing

  • Description

4" x 1-1/4" EXTREME DUTY HARD RUBBER WHEEL SWIVEL CASTER WITH 1/2" THREADED STEM BALL BEARINGS AND BRAKE - Part #: Q524021XHR

Hard rubber wheels are economically priced and recommended for applications that require higher weight capacities than soft rubber wheels can handle. These wheels work best for applications that don’t require non-marking treads or sitting in place for long periods of time. They also work well in outdoor environments and roll well over small debris, rough floors, cracks, and floor joints.

Wheels with ball bearings require less power on your end when it comes to the initial push and while it's moving than wheels without them.

We would not recommend these wheels for applications that require sitting in one spot for long periods of time under load.

Options:

Stem Length 1-1/2" Inch Stem


Specifications:

Load Capacity (lbs.): 300 Link to Replacement Wheel: Call
Wheel Diameter: 4" Caster Rig Color/Finish: Silver Zinc Plated
Tread Width: 1-1/4" Swivel or Rigid Caster: Swivel
Wheel Type: Hard Rubber Swivel Radius: 3-13/32"
Wheel Bearing Type: Ball Swivel Construction/Diameter: Kingpin
Overall Height: 5" Temp Range: -40 to 160˚F
Stem Size: 1/2" Wheel Durometer: Shore 55 D (+/-5)
Stem Length: 1" Wheel Color: Black
Stem Thread Pitch: 13 Weight: 1.92 lbs.
